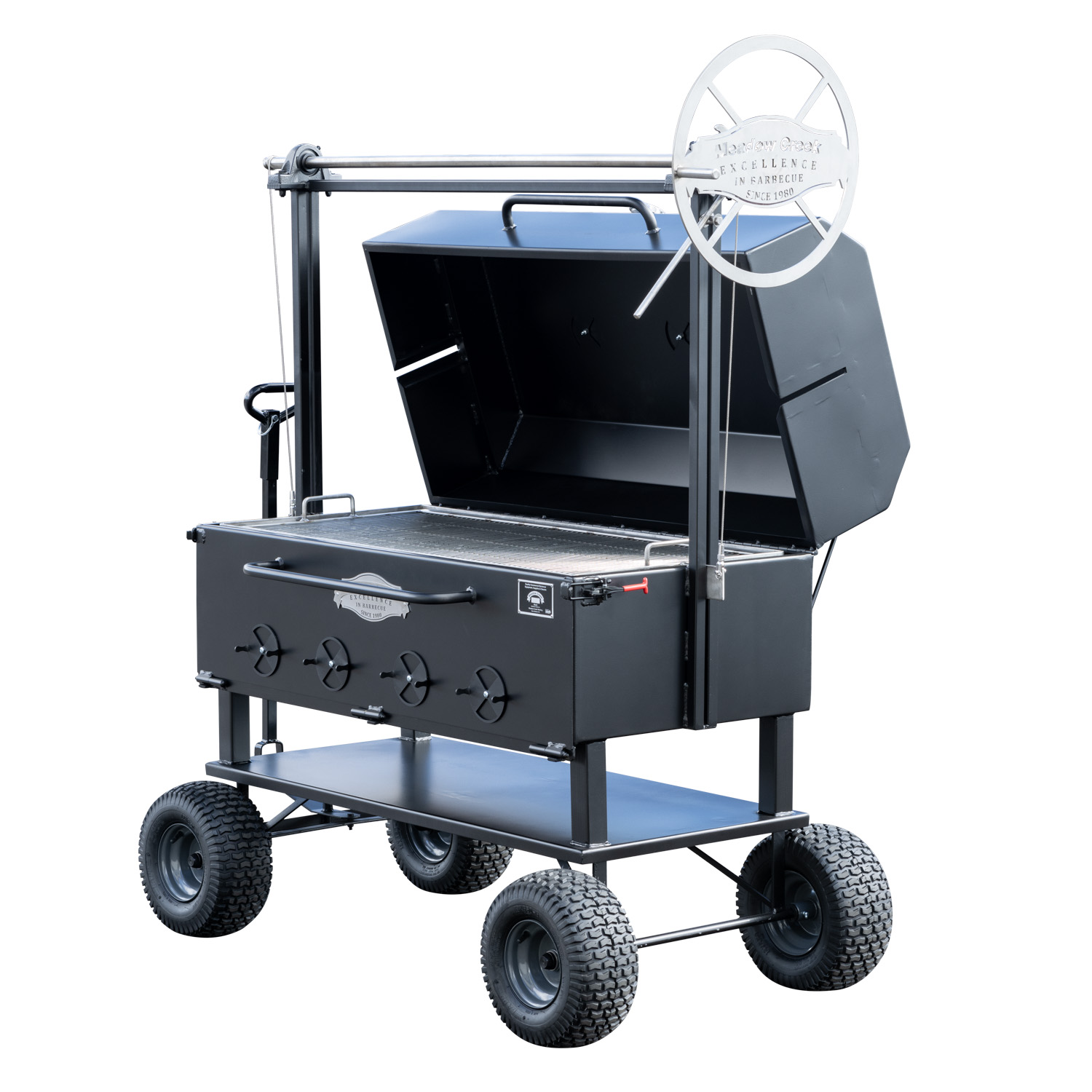

Meadow Creek SM48 Santa Maria Grill
The Meadow Creek SM48 Santa Maria Grill is a wood and charcoal grill built around a stainless steel crank wheel that raises and lowers the grate over an open fire. Its 22 by 45 inch stainless grate adjusts from 5 to 30 inches above the coals, and Meadow Creek hand-welds it in Lancaster County, Pennsylvania.
The SM48's grate adjusts from 5 to 30 inches above the fire using a stainless steel crank wheel and cable system. A hinged front panel swings down for full access to the charcoal tray, backed by eight spin vents split between the front and back for fire control. The SM48's standard grate measures 22 by 45 inches of welded stainless steel and swaps out for optional griddle, seafood basket, or chicken flipper grates. Each of those grates is available in full and half-width sizes so two accessories can run side by side.
The SM48 measures 33 inches wide by 68 inches long by 73 inches tall and rolls on 13 inch turf tires. That keeps it easy to move between a storage corner and the cook site. Meadow Creek equipment is hand-welded in Lancaster County, Pennsylvania. That is the same standard the rest of the Meadow Creek lineup is built to.
| Overall dimensions | 33 inches W x 68 inches L x 73 inches H |
|---|---|
| Grate size | 22 inches by 45 inches, wire grid with half inch spacing |
| Grate height range | 5 to 30 inches above the fire |
| Cooking surface | Roughly 990 square inches of grate |
| Metal thickness | 11 gauge grill body, 13 gauge charcoal pan and shelf |
| Mobility | Wagon chassis with 13 inch air-filled turf tires |
| Optional lid | 13 gauge, 12 inches tall, with stainless thermometer and 3 vents |
| Availability | Available to order through our showroom, ask about lead time |
ask us what you can come try at the showroom, and which optional grates we can bring in for a demo.
Crank it down for searing.
Crank it up for the long cook.
Meadow Creek SM48 Santa Maria Grill

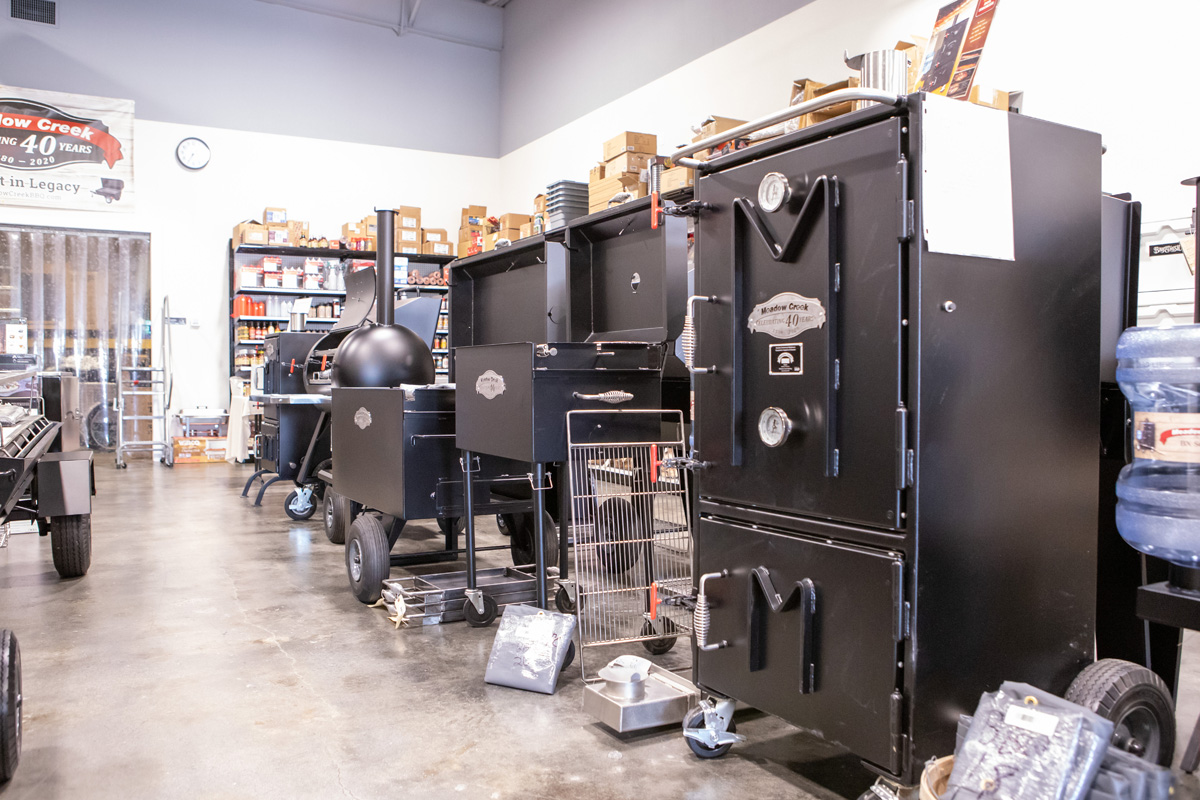

It is a crank-height Santa Maria grill built to the same standard as the rest of the catalog, hand-welded in Lancaster County, Pennsylvania. If a crank-height grate is more grill than the space calls for, our wider selection covers everything from backyard cabinet smoking to full catering rigs.
