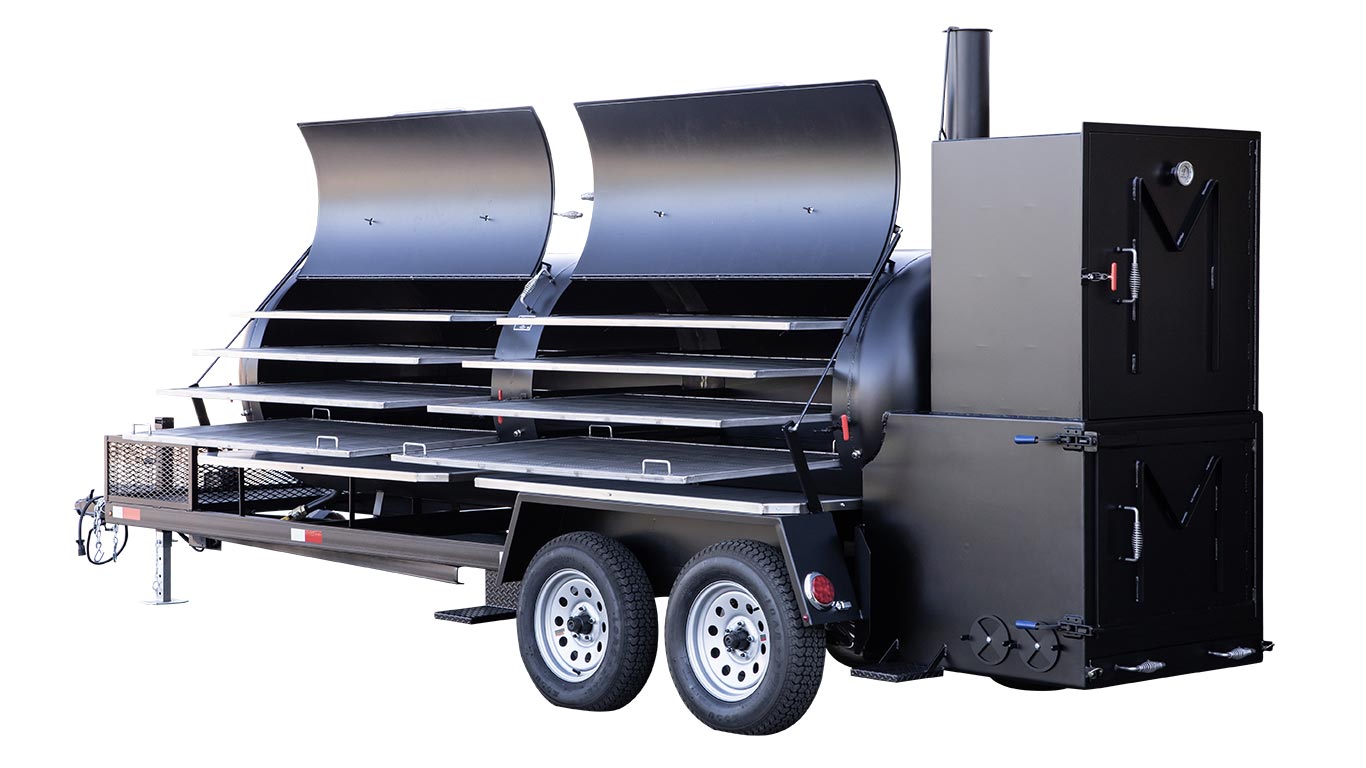

Meadow Creek TS1000 Tank Smoker With Optional Stainless Steel Exterior Shelves and Probe Ports

Meadow Creek TS1000 Barbeque Smoker Trailer

$33,960.00 (add-ons in photos not included)

The TS1000 Tank Smoker Trailer is our biggest reverse-flow tank smoker, ready for any crowd you can throw at it. Built to satisfy the demands of large caterers and barbecue restaurants who maxed out the huge TS500, the TS1000 boasts a giant 1,000-gallon tank for more than 2-1/2 times the cooking capacity of the TS500.

Add Optional BBQ Grill:

Options:

Jerky Racks:

Rib Racks:

  • Request a quote
  • Directions to store

    Use this form to request a quote or to check availability of this item by email. You can also call us at 941-217-6995 to talk with one of our staff during store hours (listed at the bottom of this page).

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Description

    The TS1000 Tank Smoker Trailer is our biggest reverse-flow tank smoker, ready for any crowd you can throw at it. Built to satisfy the demands of large caterers and barbecue restaurants who maxed out the huge TS500, the TS1000 boasts a giant 1,000-gallon tank for more than 2-1/2 times the cooking capacity of the TS500.

    Its eight sliding stainless steel grates offer 130 square feet of cooking area, enough space for up to 180 pork butts or 140 briskets! The spacious warming box holds six full-size restaurant pans. The TS1000 provides all the standard features of our TS series, giving you the ease of use and the confidence you need to focus on supplying the best barbecue your crowd has ever tasted.

    When it’s time to hit the road, the TS1000’s rugged trailer has the quality, balance, and safety features to give you peace of mind no matter how many miles you need to cover. A four-inch channel frame provides a bullet-proof foundation for this beast of a smoker, the heavy-duty tandem axle with brakes keeps the fifteen-inch highway wheels rolling, and ample LED lighting keeps you visible.

    Features of the TS1000 Barbeque Smoker

    • 8 Stainless Steel Slide-Out Grates
    • Reverse-Flow Draft
    • Built-In Water Pan
    • All Stainless Steel Handles
    • 4 Expanded Metal Exterior Shelves (2 on Each Side)
    • 2 Doors on Each Side of Smoker
    • Warming Box With 3 Shelves
    • 4″ Channel Frame Trailer
    • Tandem Axle With Brakes
    • Easy-to-Lube Bearings
    • Spacious Wood Box
    • Heat Baffles on Fire Box to Protect Wheels
    • Gas Springs on Smoker Doors
    • Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
    • Tanks are made of 3/16” plate steel and fireboxes of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
    • Stainless steel calibratable thermometer
    • Grate in firebox with slide-out ash pan
    • Positive-lock latches on all doors
    • Drain with ball valve for draining the tank
    • Trailer models are built on a tubular frame and feature a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axles, road tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate. We are a licensed trailer manufacturer and can provide a certificate of origin for trailer models.

    Additional information

    Overall Dimensions

    278”l x 72”w x 97”h

    Cooking Area

    130.81 sq. ft. (18,837 sq. in.)

    Grate Dimensions

    2 – 33” x 63”, 4 – 39.75” x 63”, 2 – 37” x 63”

    Space Above Top Grate

    5.5”

    Space Between Grates

    5.5”

    Grate Style

    Wire Grid With 1/2” Spacing

    Tank Dimensions

    41” x 168” (1000-gallon)

    Metal Thickness on Tank

    0.25”

    Fire Box Dimensions

    38.5” Cube (Inside: 38” x 38” x 34”)

    Metal Thickness on Fire Box

    0.25”

    Warming Box Dimensions

    26” x 34.25” (Inside)

    Warming Box Grate Dimensions

    26” x 34.25”

    Space Between Grates in Warmer

    8.5”

    Net Weight

    5,000 lbs.

    Capacity of Pork Butts

    178-182

    Capacity of Baby Back Ribs

    140-165

    Capacity of Spare Ribs

    100-110

    Capacity of Whole Briskets

    130-140

    Capacity of Whole Chickens

    280-290
