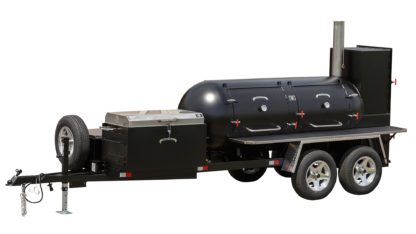

Meadow Creek TS500 Reverse-Flow Smoker Trailer
Meadow Creek TS500 smoker trailer use
The Meadow Creek TS500 is a reverse-flow tank smoker trailer built from a 500-gallon tank with nearly 47 square feet of cooking area. Meadow Creek builds its cookers by hand in Pennsylvania. The TS500's warming box holds six full-size restaurant pans, and it rides on an axle rated for 5,000 pounds.
| Cooking style | Reverse-flow tank smoker; standard wood box |
|---|---|
| Optional equipment | Charcoal slide-out basket |
| Tank | 500-gallon, 37" x 108", 0.25" steel |
| Overall dimensions | 202 in. long, 72 in. wide, 98 in. tall |
| Cooking area | 46.96 square feet of surface (6,762 square inches) across six grates |
| Grate style | Wire grid, 1/2" spacing |
| Warming box | 21" x 27.5", holds six full-size restaurant pans |
| Firebox | 30.5" cube, 0.25" steel |
| Mobility | Trailer chassis, 5,000 lb. rated axle |
| Weight | 2,800 lbs. (shipping 2,800 lbs.) |
| Build | Built by hand in Pennsylvania |
| Availability | In our catalog, by order. Ask about lead time |
Meadow Creek lists capacity for 64 to 65 pork butts, 50 to 60 racks of baby back ribs, 46 to 50 whole briskets, or up to four 40-pound whole pigs. These are listed loading capacities, not a cooking result guarantee. The TS500 is available to order through our Sarasota showroom.
Source: Meadow Creek TS500 product page (checked October 9, 2026).
Built for catering crews that measure output in racks, not portions.
Ask our Sarasota showroom about the TS500.
Manufacturer documents and warranty.
Meadow Creek's warranty page states a one-year term from the date of original sale. It makes no warranty on tires, wheels, brakes, axle assemblies, or hitches beyond the respective makers' warranties. See the full warranty terms. Pinecraft supports the manufacturer warranty.
